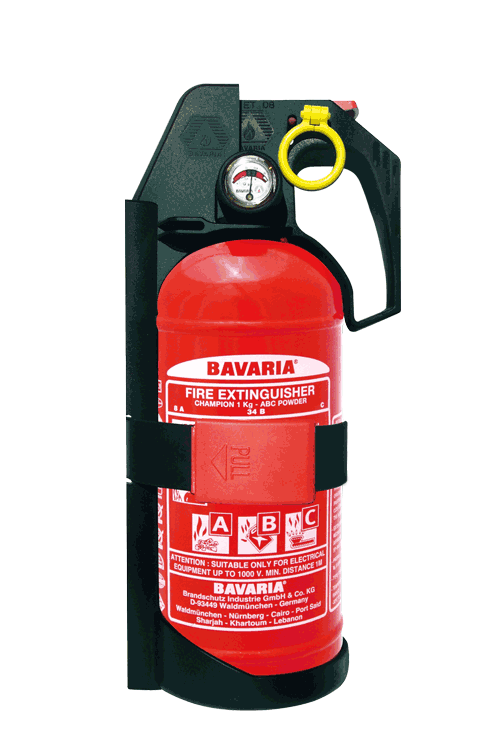

CHAMPION OPTIMA

Applications:

CHAMPION OPTIMA is a versatile fire extinguisher designed for optimum protection against fire hazards of vehicles, households, workshops, and others.

Download Files

CHAMPION OPTIMA:
  • Supreme extinguishing rating
  • Optimum for use in vehicles
  • Full hand grip handle for best control and safety for one hand operation
  • Allows intermittent and repeated operation
  • Safe in vehicle due to its compact design for easy placing under seats as well as with holding bracket and strap
  • Equipped with a pressure gauge for instant pressure indication
  • Equipped with pressure check valve
  • CALIBER is a special purpose fire extinguisher, equipped with a unique valve, size and weight properties
  • High quality surface treatment and red polyester coating
  • Affords the highest extinguishing rating due to its multipurpose dry chemical powder “BAVARIA Superlative Powder“
  • Suitable for electrical equipment up to 1000 V, at minimum distance 1 m
CHAMPION OPTIMA:

Capacity

1 kg

Extinguishing Rating

8A 55B C (+R)*

Operating Temperature Range*

-30 °C to +60 °C

Testing Pressure

35 bar

Bursting Pressure

Over 70 bar

Valve Material

Special engineered polymer

Shell Material

DC 04 Steel according to DIN EN 10130

Extinguishing Agent

MAP-based “BAVARIA Superlative Powder“

Paint Finish

Surface treatment and 100% polyester coating

Approx. Gross Weight

1950 gm without packaging and bracket holder

Approx. Unit Dimension (lxwxh)

115.5 x 90.5 x 268.5 mm without packaging

*(+R) Plus Powder Reserve

* This product is certified to fully operate at temperatures up to +70 °C according to ES 734 Standard





Warranty:



Period of Warranty

2 Years

Coverage of the Warranty

Against material failure and production defects

Method of Warranty Coverage

Limited to the replacement of the defected part or product after verification that the failure is covered by the scope of the warranty

Warranty Exclusions

Failures due to misuse, mishandling, or inspection or repair by an unauthorized dealer or entity







European Standard DIN/EN3 Certified

The extinguishing media (dry chemical powder) is certified according to the European Norm EN 615

Egyptian Standard ES 734 Certified

TÜV (SÜD Deutschland) Approved Pressure Vessel

Awarded the European (CE ) mark and the German Geprüfte Sicherheit (GS) Mark

Produced According to International Quality Management System IATF 16949 in the Scope of Vehicles Extinguishers

The Company is certified according to Quality, Environment and OHSAS Management Systems ISO 9001, ISO 14001 & BS-OHSAS 18001

 Bavaria Laboratory Accredited According to the ISO/IEC 17025
